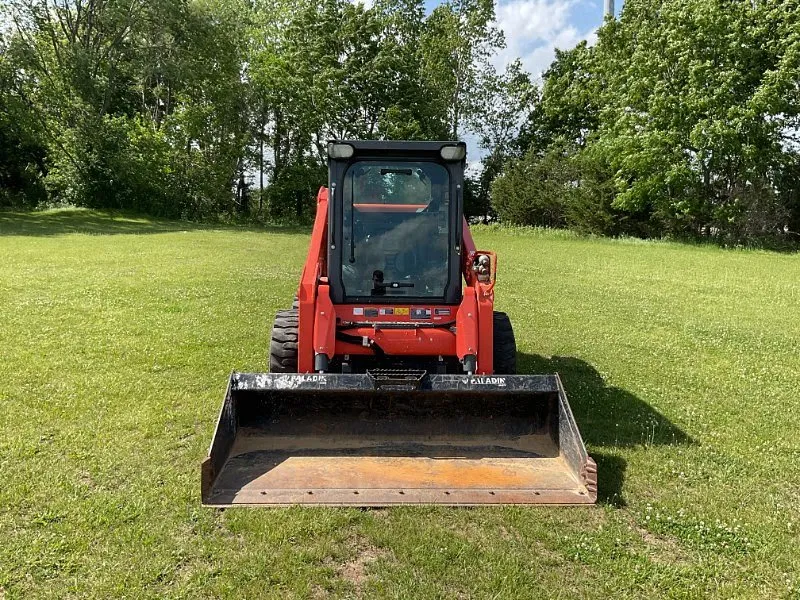

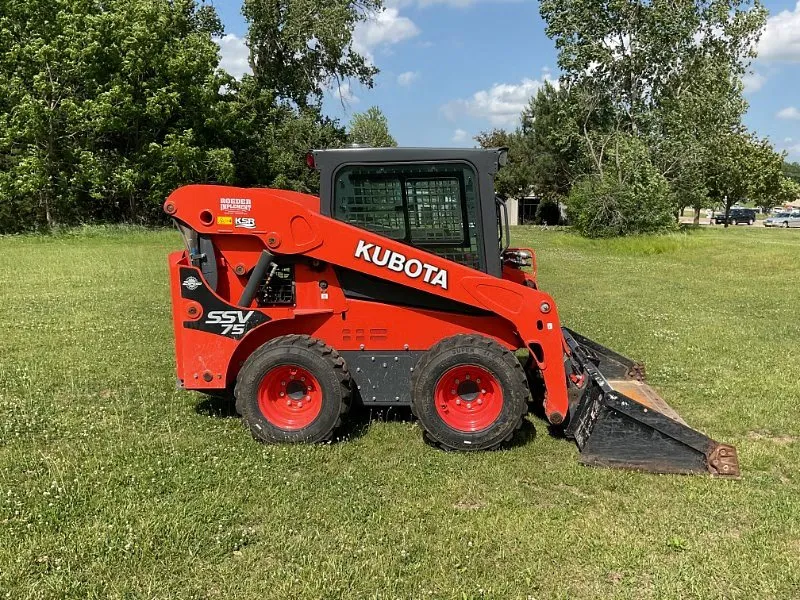

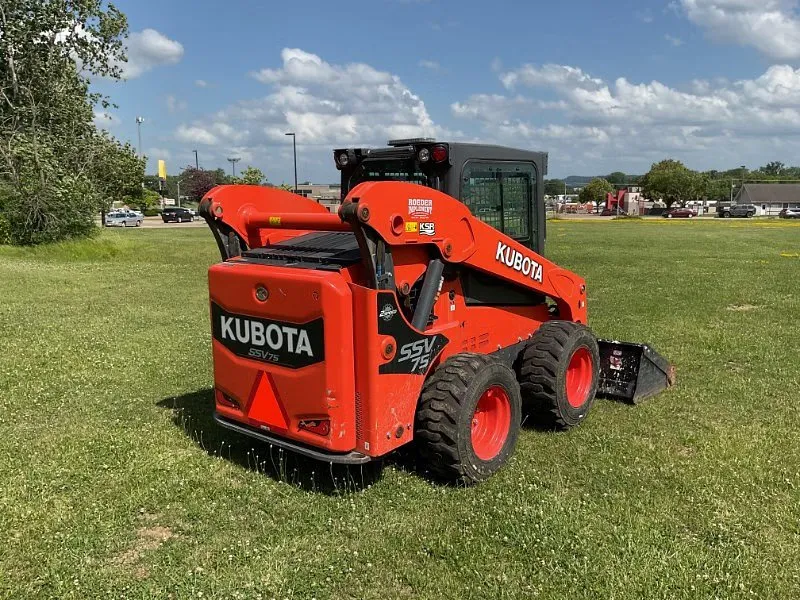

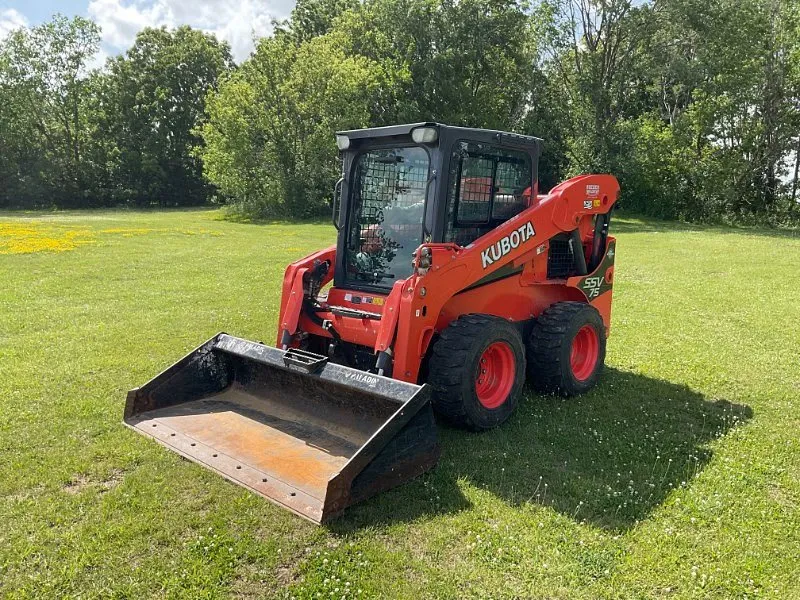

2020 Kubota SSV75
View All Photos
.
Description
General Information
Year: 2020
Manufacturer: Kubota
Model: SSV75
Hours: 646
Serial Number: JKUS0751H00J22184
Condition: Used
Category: Skid Steer Loader
ROPS: Open
Drive Type: 4WD with Two-Speed Transmission
Lift Type: Vertical Lift
Operating Weight: 8,157 lbs
Rated Operating Capacity: 2,690 lbs
Tipping Load: 5,380 lbs
Tire Size: 12 x 16.5
Fuel Type: Diesel
Emissions Compliance: Tier 4 Final
Fuel Tank Capacity: 26.9 gallons
General Information
Year: 2020
Manufacturer: Kubota
Model: SSV75
Hours: 646
Serial Number: JKUS0751H00J22184
Condition: Used
Category: Skid Steer Loader
ROPS: Open
Drive Type: 4WD with Two-Speed Transmission
Lift Type: Vertical Lift
Operating Weight: 8,157 lbs
Rated Operating Capacity: 2,690 lbs
Tipping Load: 5,380 lbs
Tire Size: 12 x 16.5
Fuel Type: Diesel
Emissions Compliance: Tier 4 Final
Fuel Tank Capacity: 26.9 gallons
Hydraulic Tank Capacity: 4.2 gallons
Engine Details
Engine Make: Kubota
Engine Model: V3307-CR-TE4
Engine Type: 4-Cylinder, Turbocharged Diesel
Displacement: 203.3 cu in (3.33 Liters)
Gross Horsepower: 74.3 HP
Net Horsepower: 71.6 HP
Bore x Stroke: 3.8″ x 4.8″
Cooling System: Liquid-Cooled
Starting System: Electric Start
Features & Specifications
Performance
Bucket Breakout Force: 5,884 lbs
Arm Lifting Force: 4,850 lbs
Height to Bucket Pin: 128.3 in
Dump Height at Bucket Discharge: 98 in
Dump Reach at Max Height: 36.9 in
Maximum Dump Angle: 43°
Bucket Rollback at Ground Level: 27°
Drive Train
Travel Speed – Low: 7.4 mph
Travel Speed – High: 11.8 mph
Transmission: Two-Speed Hydrostatic
Drive Type: Four-Wheel Drive
Hydraulics
Hydraulic System Type: Standard Flow
Pump Flow Rate: 20.9 GPM
System Pressure: 3,271 PSI
Auxiliary Hydraulics: Yes – Front Couplers Installed
Capacities
Fuel Tank Capacity: 26.9 gallons
Hydraulic Reservoir Capacity: 4.2 gallons
Dimensions
Overall Length with Bucket: 144.1 in
Width Over Tires: 71.8 in
Height to Top of ROPS: 81.3 in
Ground Clearance: 8.1 in
Rear Angle of Departure: 24.6°
Wheelbase: 47.2 in
Operator Station & Controls
Operator Environment: Open ROPS
Controls: Selectable Joystick Controls
Visibility: Excellent 360° Field of View
Instrumentation: Digital Display Panel
Optional Upgrades: Enclosed Cab Kit Available Separately
Buy with Confidence: We are so confident in the condition of our item that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your item arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best online-buying experience possible. Reach out today and let us help you find your next item!
Contact us today for more information!!
Phone: +1 (605) 846-8859
